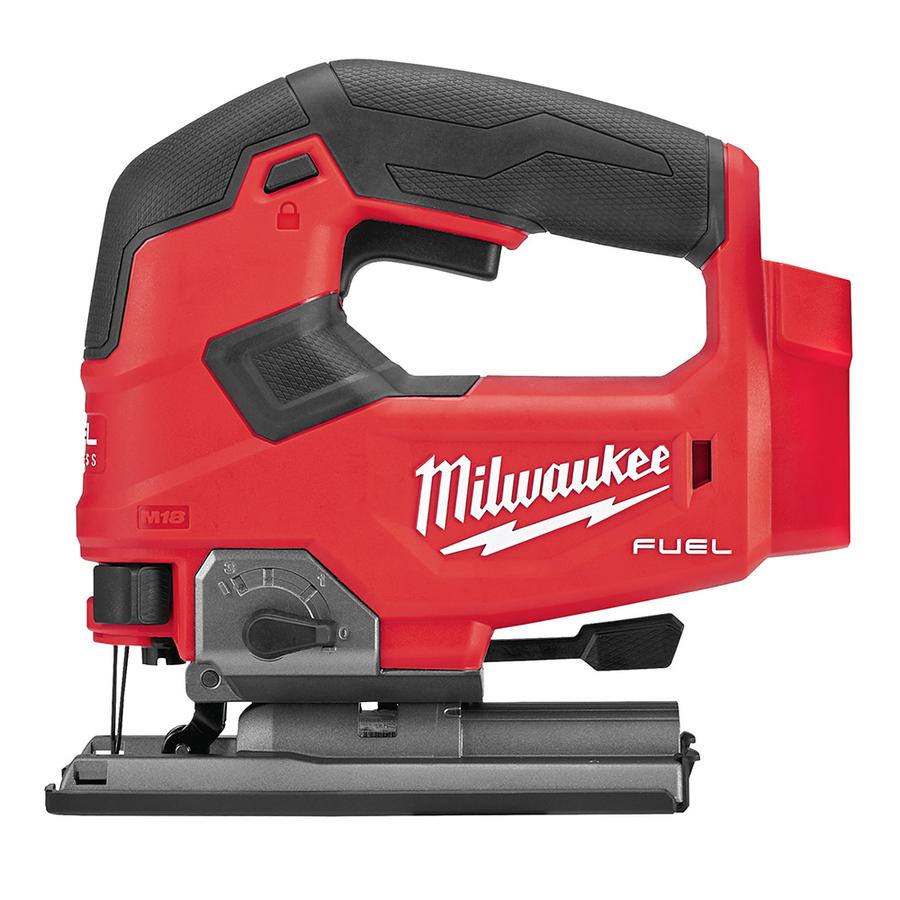

Milwaukee Tool M18 FUEL™ D-handle Jig Saw
Item #:
2737-20
Manufacturer Item: 2737-20
The M18™ FUEL™ D-handle jig saw combines power, blade speed and precision, to provide the highest quality cuts in a wide variety of materials. The M18™ FUEL™ D-handle jig saw leverages the POWERSTATE brushless motor and REDLINK Plus™ intelligence to provide higher blade speed than corded jig saws at 3500 strokes per minute for clean controlled cuts with minimized chipping or bucking. Leveraging the M18™ REDLITHIUM™ XC5.0 battery the M18™ FUEL&tr...
199.99
Each
Quantity:
The M18™ FUEL™ D-handle jig saw combines power, blade speed and precision, to provide the highest quality cuts in a wide variety of materials. The M18™ FUEL™ D-handle jig saw leverages the POWERSTATE brushless motor and REDLINK Plus™ intelligence to provide higher blade speed than corded jig saws at 3500 strokes per minute for clean controlled cuts with minimized chipping or bucking. Leveraging the M18™ REDLITHIUM™ XC5.0 battery the M18™ FUEL™ D-handle jig saw provides up to 105 linear feet of cutting in 3/4 in. laminated particle board, delivering all day productivity with less trips to the charger. The saw features tool-less blade change, tool free bevel adjust with pin-detents at 0°; 15°; 30°; and 45° as well as an LED light and on/off blower to keep the cut line visible while cutting.
Features
- Higher blade speed than corded jig saws for clean controlled cuts
- Power to cut hard materials including hardwoods and metals
- Part of the M18™ system, featuring over 150+ tools
- POWERSTATE brushless motor - increased SPM and the power to cut hard materials, including hardwoods and metals
- REDLINK™ plus intelligence - the most advanced system of cordless power tool electronics; provides optimized performance and overload protection using total system communication between tool, battery and charger
- REDLITHIUM™ battery Technology - Superior pack construction, electronics and performance deliver more work per charge and more work over pack life than nay battery on the market
- 4 position orbital cutting provides versatility for application specific cutting
- Tool free shoe bevel with positive stops allows for quick and accurate shoe adjustment with pin-detents at 0°, 15°, 30° and 45°
- Variable speed trigger between 0 and 3500 strokes per minute, providing precise control for clean cuts with less chipping
- On/off cut line blower keeps the cut line clear of debris, and allows user to turn off blower when using dust extraction
- LED light illuminates the cut line
- Accepts T-shank jig saw blades
- Includes dust cover and dust extraction tube
- Includes non-marring shoe cover for protection of finished surfaces
- Compatible with over 150+ tools on the M18™ platform
Specifications
| Powered Tool Power Source | Electric - Cordless |
| Cordless / Corded | Cordless |
| Saw Design | Top / D-Handle |
| Blade Type | Jig Saw T-Shank |
| Stroke Length (in) | 1 |
| Maximum Strokes per Minute - No Load | 3500 |
| Minimum Strokes per Minute - No Load | 0 |
| Maximum Wood Cutting Capacity (in) | 5.5 |
| Maximum Metal Cutting Capacity (in) | 0.38 |
| Housing Material | Glass Filled Nylon |
| Color / Finish | Red/Black |
| Height | 8.6 Inches |
| Length | 8.9 Inches |
| Width | 3.2 Inches |
| Net Tool Weight (lbs) | 4.85 |
| Weight - Battery Installed (lbs) | 6.49 |
| Weight - Excluding Battery (lbs) | 4.85 |
| Variable Speed | Yes |
| Electronic Speed Control | Yes |
| Lock-on Switch | No |
| Adjustable Shoe | Yes |
| Bevel Capacity (°) | 45 |
| Tool-Less Bevel Adjustment | Yes |
| Bevel Adjustment Wrench Included | Not Required |
| Scrolling Action | Yes |
| Orbital Action | Yes |
| Number of Orbital Action Settings | 4 |
| Dust Blower | Yes |
| Tool-Less Blade Changing | Yes |
| Blade Wrench Included | Not Required |
| Quick Change Blade System | Yes |
| Integrated Work Light | Yes |
| Integrated Laser Guide | No |
| Number of Batteries Required | 1 |
| Number of Batteries Included | 0 |
| Battery Voltage (V) | 18 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Charger Included | No |
| External Motor Brush Access | No |
| Shoe Material | Metal |
| Shoe Cover Included | Yes |
| Main Handle Type | D-Handle |
| Integrated Blade Storage | No |
| Blades Included | 1 |
| Product Storage Included | No Case Included |
| CSA Certified | No |
| ETL Listed | No |
| UL Listed | Yes |
