> DEWALT 20V MAX* ATOMIC Cordless Brushless 5/8 in SDS+ Rotary Hammer Dril...

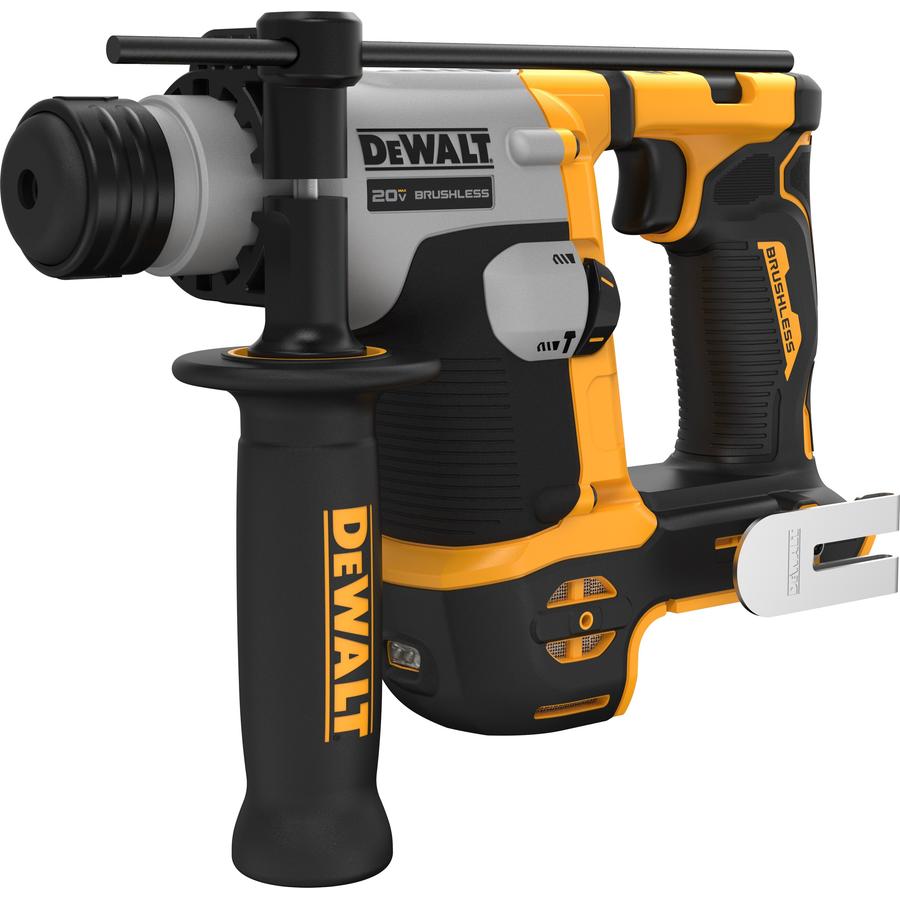

DEWALT 20V MAX* ATOMIC Cordless Brushless 5/8 in SDS+ Rotary Hammer Dril...
Item #:
DCH172B
Manufacturer Item: DCH172B
Tackle demanding jobs with this high-performance ATOMIC 20V MAX 5/8 in. Brushless Cordless SDS Plus Rotary Hammer. The DEWALT brushless motor and durable German-engineered mechanism deliver 1.4 Joules of impact energy. The lightweight and compact design makes this tool ideal for rod hanging, concrete forming, cable tray and strut mounting, clip and bracket mounting, and railing mounting. It is part of the PERFORM and PROTECT product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL Sy...
189.99
Each
Quantity:
Tackle demanding jobs with this high-performance ATOMIC 20V MAX 5/8 in. Brushless Cordless SDS Plus Rotary Hammer. The DEWALT brushless motor and durable German-engineered mechanism deliver 1.4 Joules of impact energy. The lightweight and compact design makes this tool ideal for rod hanging, concrete forming, cable tray and strut mounting, clip and bracket mounting, and railing mounting. It is part of the PERFORM and PROTECT product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL System and becomes OSHA Table 1 Compliant when used with the DWH200D shroud and DWH161D1 dust extractor. Battery and charger sold separately.
Features
- FAST DRILLING IN CONCRETE with 1.4 Joules of impact energy
- LIGHTWEIGHT DESIGN: Ideal for rod hanging, concrete forming, cable tray and strut mounting, clip and bracket mounting, and railing mounting
- Brushless Motor & German-Engineered Mechanism for efficient performance and runtime
- SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles comparted to rotary hammers without this feature
- OSHA TABLE 1 COMPLIANT when paired with DWH200D shroud and DWH161D1 dust extractor
- MODE SELECTOR SWITCH: Quickly switch between drill and hammer drill applications
Specifications
| Height | 3.858 in |
| Length | 11.500 in |
| Width | 8.543 in |
| Weight | 4.608 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Type | 20V MAX* Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | CSA Listed | UL Listed |
| Claims Needed | Yes |
| Bare Tool | Yes |
| Case Type | No Case Included |
| Chuck Capacity | .625 |
| Chuck Size | 5/8 in |
| Chuck Type | SDS-Plus |
| Drive Size | 5/8 in |
| Engine | Brushless |
| Handle Material | Plastic |
| Handle Type | D-Ring |
| Housing Material | Plastic |
| Impact Energy | 1.4 Joules |
| Impacts / Blows / Blasts Per Min | 4980 |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Work Light | Not Featured |
| Keyless/Keyed | Keyless |
| Maximum Speed | 1060 RPM Rpm |
| Optimum Drilling Range | 5/32 - 1/2 in. |
| Reversible | Yes |
| Side Handle Included | Yes |
| Thin Wall Bit Capactiy | No |
| Variable Speed | Yes |
