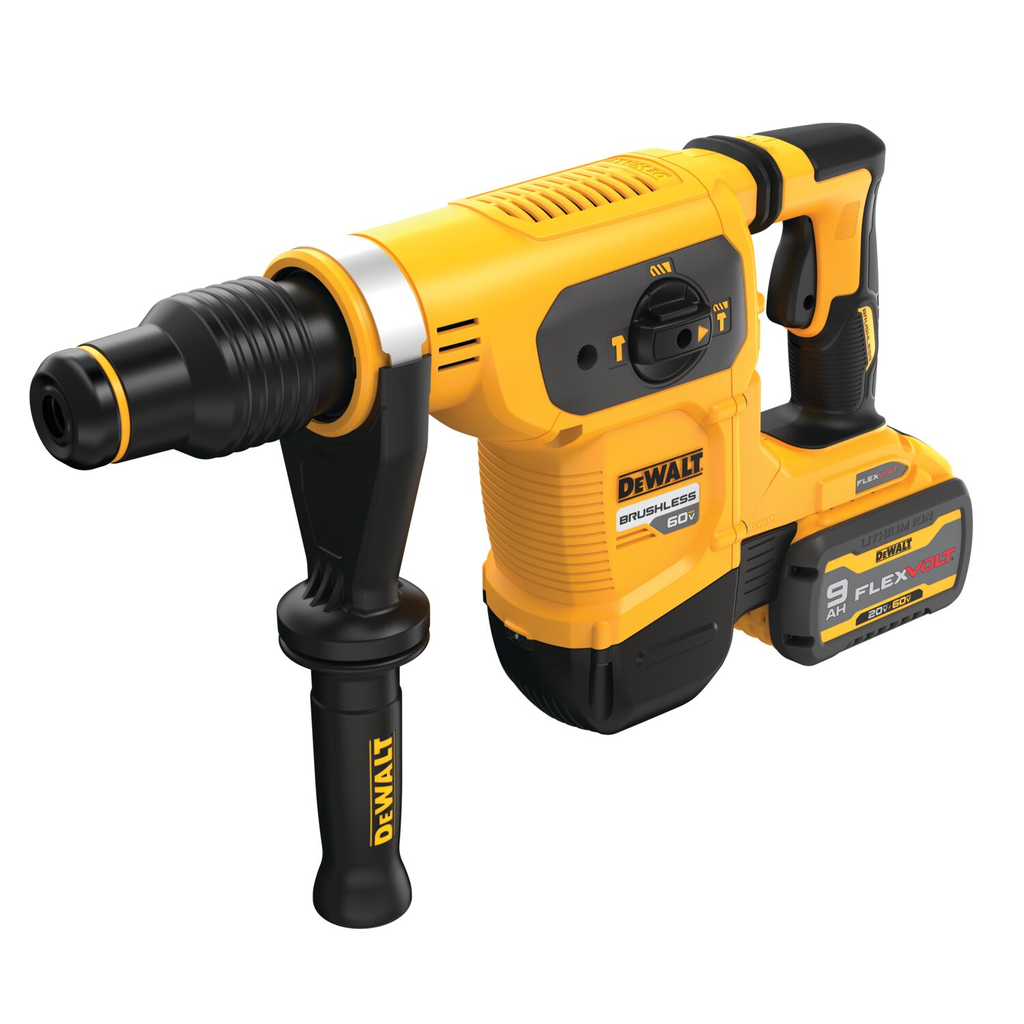

DEWALT 60V MAX* XTREME Cordless Brushless 1-9/16 in SDS Max Rotary Hamme...
The DCH481X2 60V Max Brushless 1-9/16" SDS Max Combination Hammer is a light weight high-performance hammer that is powered by a DEWALT brushless motor and durable German engineered mechanism. The DCH481 delivers 6.1 joules of impact energy for fast drilling, even in the hardest concrete. The light weight design makes it ideally suited for horizontal serial drilling for #4 - #8 rebar, dry coring and chipping in any mid to upper wall and ceiling application. The patented E-Clutch system provides enhanced control to the user in a bind up situation and can help minimize sudden torque reaction compared to standard clutches. The Active Vibration Control technology employed delivers reduced user vibration for less user fatigue and greater productivity. With its balanced design, SHOCKS Active Vibration Control technology and Extreme Run Time, this hammer is ideally suited for all day use, even in the hardest concrete.
Features
- True corded performance
- High speed drilling performance combined with extensive holes per charge
- Anti rotation system detects a loss of tool control, and reacts by instantly cutting the power
- Rotation stop mode for chiselling and impact stop mode for rotary only drilling with dry diamond cores
- Brushless motor with high capacity XR FLEXVOLT 9.0Ah 18V/54V Lithium-ion battery platform for extreme runtime and reduced maintenance
- Perform & Protect: low vibration at 9.4m/s², minimising user fatigue
- Bright white LED with delay feature improves visibility
- Ideal for drilling anchors and fixing holes into concrete, brick and masonry up to 40mm in diameter
- Compact, lightweight and ergonomic design for improved comfort and support during extended operating periods
Specifications
| Height | 5.300 in |
| Length | 23.150 in |
| Width | 18.430 in |
| Weight | 27.300 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 60 V V |
| Battery Included | Yes |
| Battery Type | 60V MAX* Lithium Ion |
| Battery Qty | 2 |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Battery Amp Hours | 3 Ah Ah |
| Charger Included | Yes |
| Charger Type | Jack Plug |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | UL Listed |
| Claims Needed | No |
| Hazmat Code | A1 |
| Case Type | Hard |
| Chipping | Yes |
| Chuck Capacity | 1.5625 in |
| Chuck Size | 1-9/16 in |
| Chuck Type | SDS-Max |
| Drive Size | 1-9/16 in |
| Engine | Brushless |
| Handle Material | Plastic |
| Handle Type | D-Ring |
| Housing Material | Plastic |
| Impact Energy | 6.1 Joules |
| Impacts / Blows / Blasts Per Min | 3150 |
| Individual Vs. Set (Syndigo) | SET |
| Integrated Work Light | Not Featured |
| Keyless/Keyed | Keyless |
| Kit | Yes |
| Maximum Speed | 550 RPM Rpm |
| Reversible | Yes |
| Side Handle Included | Yes |
| Thin Wall Bit Capactiy | Yes |
| Variable Speed | Yes |
