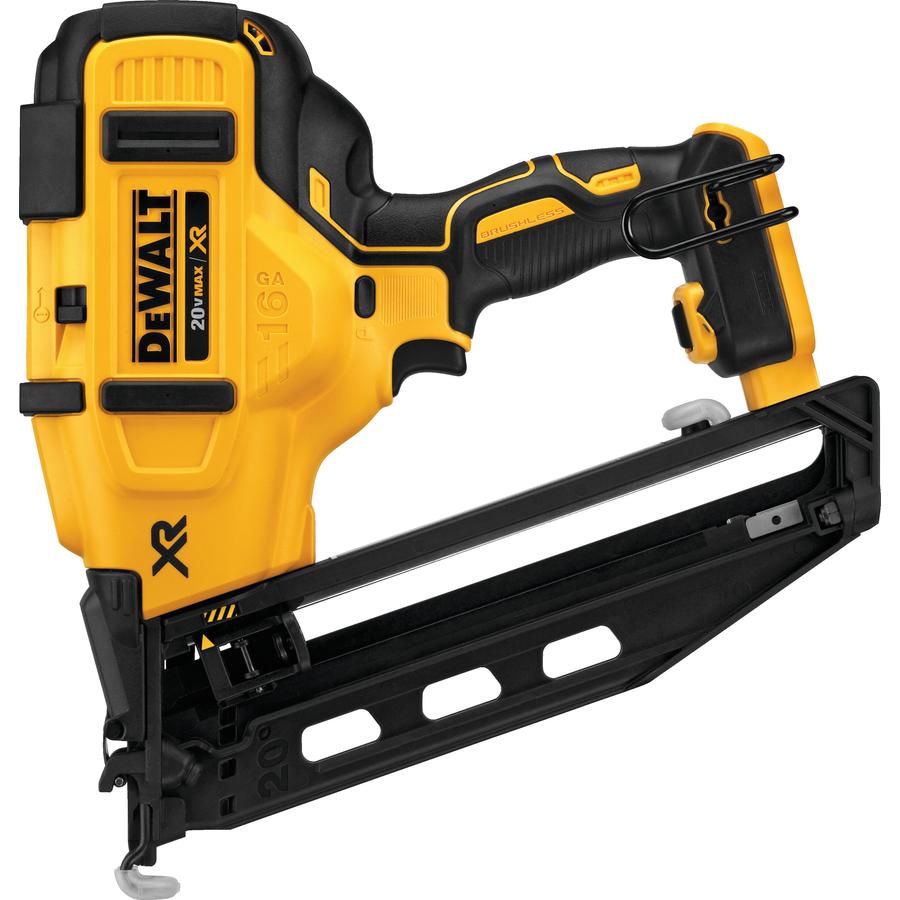

DEWALT 20V MAX* XR 16 GA Cordless Angled Finish Nailer - Tool Only
Item #:
DCN660B
Manufacturer Item: DCN660B
The DEWALT DCN660 16 Gauge Angled Finish Nailer drives 16 Gauge angled finish nails from 1-1/4" to 2-1/2" which makes it ideal for fastening crown molding, casing, and baseboards. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN660 is ready to go to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a w...
336.99
Each
Quantity:
The DEWALT DCN660 16 Gauge Angled Finish Nailer drives 16 Gauge angled finish nails from 1-1/4" to 2-1/2" which makes it ideal for fastening crown molding, casing, and baseboards. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN660 is ready to go to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
Features
- 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
- Brushless motor maximizes runtime and durability
- Tool-free selectable trigger for sequential or contact actuation modes
- Tool-free depth adjustment for precise countersinking of nails
- Tool-free jam release to quickly and easily clear nail jams
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Inline magazine provides easy use in multiple orientations and in tight spaces
- Compatible with all DEWALT 20V MAX batteries
Specifications
| Height | 12.375 in |
| Length | 13.062 in |
| Width | 4.375 in |
| Weight | 6.000 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX* Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Net Lit-Ion Y/N | Yes |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | ANSI Safety Listing | CSA Certified | UL Listed |
| Claims Needed | Yes |
| Adjustable Depth | Yes (Tools Not Required) |
| Air Inlet Size | 0.0 In |
| Bare Tool | Yes |
| Case Type | N/A (no case) |
| Fastener Format | Strip |
| Fastener Length | 2.5 IN |
| Firing Mode | Full Sequential |
| Gauge | 16 |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Work Light | Yes |
| Loading Type | Strip |
| Magazine Angle | 20.0 |
| Magazine Capacity | 110 |
| Maximum Fastener Size | 2-1/2 in |
| Maximum Length | 2.5 In |
| Minimum Fastener Size | 1-1/4 in |
| Minimum Length | 1.25 In |
| Multi-Purpose | Single Purpose |
| Nail Gauge | 16 gauge |
| Nail Gun Angle | 20 degree |
| Nailer Features | No Features |
| Nails Per Charge | 800 |
| Range | 16 Gauge |
