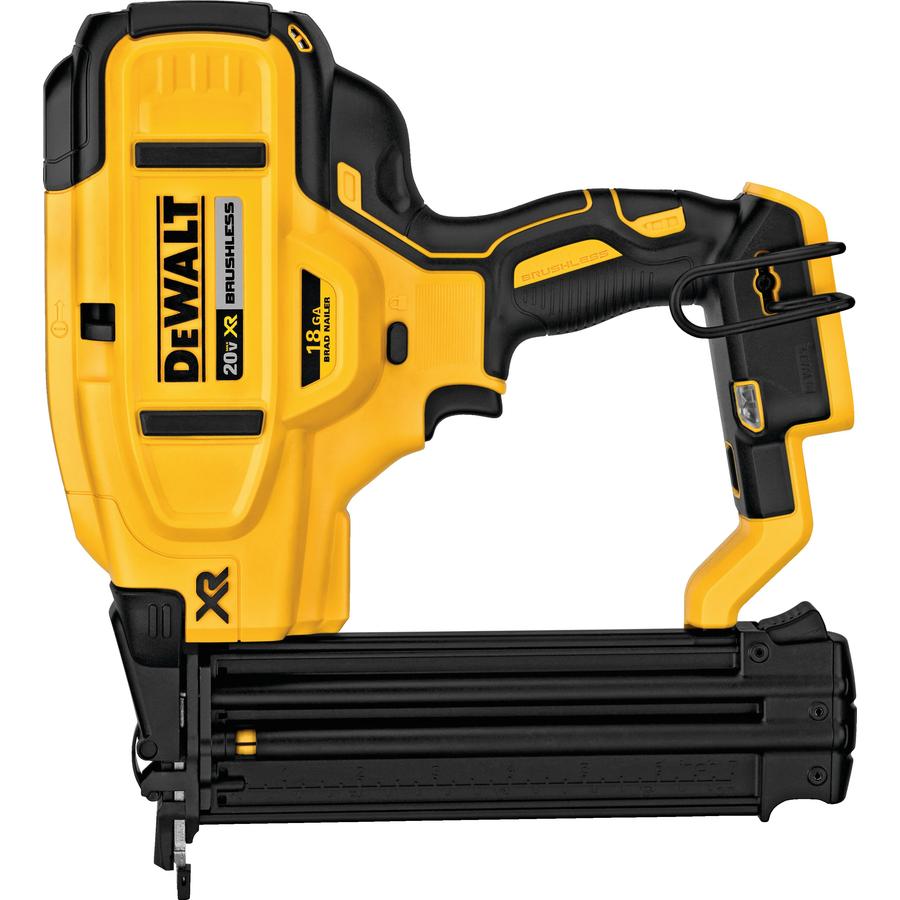

DEWALT 20V MAX* XR 18 Guage Cordless Brad Nailer (Tool Only)
Item #:
DCN680B
Manufacturer Item: DCN680B
The DEWALT DCN680 18 Gauge Brad Nailer drives 18 Gauge brad nails from 5/8 in. to 2-1/8 in. which makes it ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN680 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a...
308.99
Each
Quantity:
The DEWALT DCN680 18 Gauge Brad Nailer drives 18 Gauge brad nails from 5/8 in. to 2-1/8 in. which makes it ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN680 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
Features
- 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
- Brushless motor maximizes runtime and durability
- Micro nose improves line of sight and accuracy of nail placement (Compared to DEWALT DC608)
- Tool-free depth adjustment for precise countersinking of nails
- Tool-free jam release to quickly and easily clear nail jams
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Tool-free selectable trigger for sequential or contact actuation modes
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Low nail lockout prevents dry firing and unwanted marks on the work material
Specifications
| Height | 4.500 in |
| Length | 13.000 in |
| Width | 11.500 in |
| Weight | 6.340 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX* Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf |
| Net Lit-Ion Y/N | Yes |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | ANSI Safety Listing |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Adjustable Depth | Yes (Tools Not Required) |
| Air Inlet Size | 0.0 In |
| Bare Tool | Yes |
| Case Type | N/A (no case) |
| Engine | Brushless |
| Fastener Format | Strip |
| Fastener Length | 2.125 |
| Firing Mode | Full Sequential |
| Gauge | 18 |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Work Light | Yes |
| Kit | No |
| Loading Type | Coil |
| Maximum Fastener Size | 2-1/8 in |
| Maximum Length | 2.125 In |
| Minimum Fastener Size | 5/8 in |
| Minimum Length | 0.625 In |
| Multi-Purpose | Single Purpose |
| Nail Gauge | 18 gauge |
| Nail Gun Angle | 0 degree |
| Nailer Features | No Features |
| Nails Per Charge | 1200 |
| Range | 18 Gauge |
